STUDENT SPOTLIGHT: Each month, or every other month, a student will provide a 1-page illustrated abstract of the research they are currently conducting. This is a wonderful opportunity for the student, for our International Society for Concrete Pavements (ISCP) Members, and for the transferring and sharing technology/research through our concrete paving industry.
The ISCP “STUDENT RESEARCH SPOTLIGHT” for December 2024 is Lara Guizi Anoni, a P.D. student in Structural Engineering at University of São Paulo (São Paulo, Brazil).
BIO:
Lara Guizi Anoni is a Ph.D. student in Structural Engineering at the University of São Paulo, under the supervision of Prof. Vladimir Guilherme Haach. She holds a bachelor’s degree in Civil Engineering from the Federal Institute of São Paulo, and a Master of Science in Structural Engineering from the University of São Paulo. Her research centers on advanced Nondestructive Testing (NDT) techniques for concrete structures, with a focus on ultrasonic testing for internal damage detection. In her master’s research, Lara specialized in ultrasonic tomography, collaborating with former ISCP board member Prof. Lev Khazanovich research group at the University of Pittsburgh, where she spent three months as a research scholar. Currently, in her Ph.D., she is expanding her work to include advanced signal processing, with a project titled “Early Detection of Concrete Reinforcement Corrosion using Nonlinear Ultrasonic Techniques and Artificial Neural Networks“. Her research will integrate machine learning algorithms to enhance signal analysis and improve the prediction of corrosion stage, advancing the field of NDT for concrete structures.
TITLE:
Ultrasonic Concrete Tomography: Efficient Image Generation with Fewer Measurements
Structural maintenance costs are unavoidable to preserve a structure’s lifespan. However, they can be minimized by quickly identifying any emerging pathologies. Periodic ultrasonic inspections support preventive maintenance and cost savings over a structure’s lifecycle due to the extensive data they provide without causing structural damage. Accurate measurement and interpretation of ultrasonic test results enable tomographic imaging, improving integrity assessment and aiding more informed maintenance decisions. Despite advancements in imaging techniques, reducing the time needed for transmission tests remains a challenge. This study presents a methodology for generating high-quality images using minimal data by combining advanced reconstruction techniques with a data interpolation algorithm, aiming to encourage greater adoption of ultrasonic tomography in structural inspections.

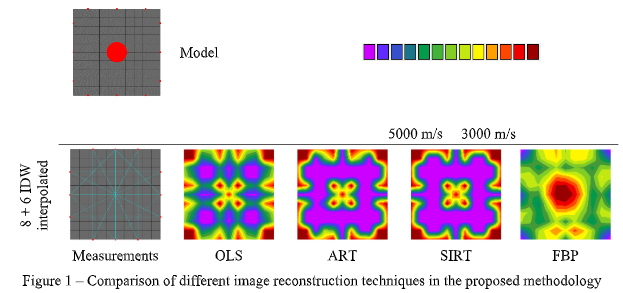

In this research, three simulated and one experimental concrete sections were used. Various image reconstruction techniques – Ordinary Least Squares (OLS), Algebraic Reconstruction Technique (ART), Simultaneous Iterative Reconstruction Technique (SIRT), and Filtered Backprojection (FBP) – were tested to produce images with the fewest measurements possible. The Inverse Distance Weighting (IDW) interpolation method was integrated to augment measurement points. The methodology began with four evenly spaced measurements, using IDW to expand the data set, enabling robust calculations with the reconstruction methods. In each iteration, four more measurements were added, and IDW interpolation was reapplied. Figure 1 shows that FBP with IDW interpolation successfully identified an internal void using just eight measurements.

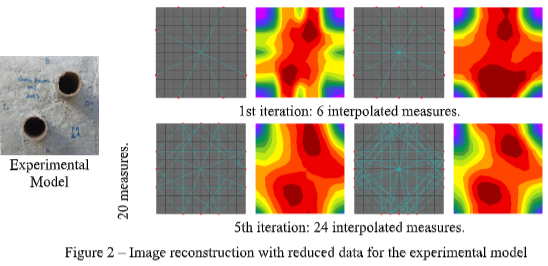

The proposed method effectively imaged concrete sections with as few as four measurement lines, and for the experimental model, 20 measurements yielded reliable results (Figure 2). All generated images successfully located the intended voids, and experimental data indicated that imaging could be completed in under 5 minutes, making the approach suitable for building inspections. This methodology is intended as a foundation for the broader use of ultrasonic tomography in NDT for concrete structures.
The methodologies developed in Lara’s master’s research have made a significant contribution to the advancement of ultrasonic transmission tomography, proposing more efficient methodologies that could accelerate its adoption in concrete structures. Additionally, her current Ph.D. project is expected to yield reliable tools for early corrosion prediction, integrating pulse-echo and transmission tomography with nonlinear ultrasonics and machine learning algorithms, ultimately leading to the development of an inspection program.
