STUDENT SPOTLIGHT: Each month, or every other month, a student will provide a 1-page illustrated abstract of the research they are currently conducting. This is a wonderful opportunity for the student, for our International Society for Concrete Pavements (ISCP) Members, and for the transferring and sharing technology/research through our concrete paving industry.
The ISCP “STUDENT RESEARCH SPOTLIGHT” for September 2024 is Bhabya Thakur, a Masters student in Civil Engineering at the Indian Institute of Technology Gandhinagar (Gandhinagar, India).
BIO:
Bhabya Thakur is an M.Tech student at the Indian Institute of Technology Gandhinagar, under the supervision of Dr. Sushobhan Sen (Co-Director of Communications and Board Member at ISCP). She obtained her bachelor’s degree in Civil Engineering from the Institute of Engineering, Pulchowk Campus, Nepal. Bhabya’s research area is focused on evaluating fatigue damage in rigid pavements in the absence of lane discipline. For this, she simulated mixed traffic using the strip-based model SiMTraM, an extension of the microscale simulation model SUMO, and calculated stresses with the Finite Element Program ISLAB2000, followed by fatigue damage analysis.
TITLE:
Fatigue Damage Evaluation of Rigid Pavements in the absence of lane discipline
The continuous movement of vehicles along the same wheel path and the stresses they induce lead to the accumulation of fatigue damage over time in Jointed Plain Concrete Pavement (JPCP). Fatigue damage has been evaluated in previous works considering wander, which implicitly assumes lane discipline. However, in India and many developing countries, heterogeneous traffic with weak lane discipline is very common, where vehicles can occupy any lateral position available on the road, regardless of the number of designated lanes which can influence the fatigue life of the pavement. Indian code of practice, IRC:58, considers 25 % of the total axle load repetitions on the edge for fatigue damage calculations. The aim of this research is to propose an alternative approach to fatigue damage calculation, taking into account the lateral placement of various types of vehicles on the road.
Traffic simulation was performed using SiMTraM to determine the lateral placement of light and heavy vehicles in low and high traffic volumes. The tensile stresses at the top and bottom of the pavement slabs, caused only by heavy vehicles, were computed using the Finite Element Program, ISLAB2000. Bottom-up and top-down fatigue damage was then evaluated using three distinct methods: the Conventional method (current Indian practice), the Quintile-based approach, and the Monte Carlo Simulation. The Quintile-based approach divides the distribution of lateral placement of vehicles into five segments (quintiles) of equal area, with each segment’s contribution combined to determine the overall fatigue damage. Monte Carlo Simulation involves selecting several trial lateral placement values from the underlying distribution and calculation of fatigue damage.

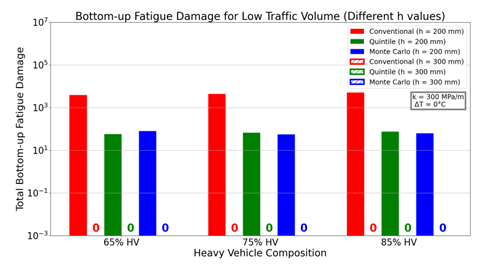

Figure 1: Bottom-up fatigue damage (a) Low traffic volume (b) High traffic volume.
‘0’ represents zero fatigue damage

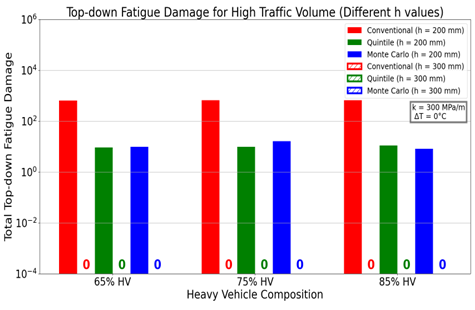

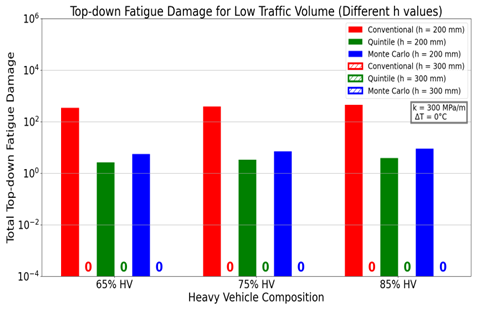

Figure 2: Top-down fatigue damage (a) Low traffic volume (b) High traffic volume.
‘0’ represents zero fatigue damage
It was found that the Conventional method, by accounting for axle loads on the edge, overestimates fatigue damage, potentially leading to conservative designs that could impact economic considerations. The other two methods showed a significant reduction in fatigue damage. However, Monte Carlo Simulation showed a varying pattern because of its stochastic nature and does not appear suitable for rigid pavements due to its sensitivity to joints. The magnitude of top-down fatigue damage is comparatively lower compared to bottom-up fatigue damage. Additionally, increased slab thickness reduced fatigue damage to zero in all the cases, indicating the improved performance of thicker pavements under load.
ISCP would like to feature a “STUDENT RESEARCH SPOTLIGHT” each month, or every other month. If you would like to nominate a student, or if you are a student and would like to nominate yourself or a colleague, please send ISCP an email to: newsletter@concretepavements.org
