Results of a Southern California freeway survey that set out to determine
the short-term & long-term performance of rapid strength concrete for the potential
repair, restoration, & slab replacement of highway infrastructure work
& restoration of highway infrastructure work.
Caltrans; IGGA; & Dr. Mike Darter, Principle Engineer-Applied Research Associates, Inc. (Apr 1999 – Present) Research, design, construction, materials, training, evaluation of highways, streets, and airports); Professor Emeritus of Civil & Environmental Engineering-University of Illinois; Former ISCP Director; and ISCP Honorary Member (2005)
Deteriorating highway and other infrastructure conditions across the U.S., combined with widespread funding shortfalls, make it clear that there is a need for cost-effective, long-term solutions for roadway preservation. Surveys of existing projects in California have addressed this need, with results documenting pavement restoration successes and offering guidance on the practice of pavement management.
The use of rapid strength concrete (RSC) for roadway construction is extremely beneficial for today’s congested highways and the traveling public. Because RSC reaches opening strength in a matter of hours, slab replacement can be accomplished overnight. The California Department of Transportation (Caltrans) has used RSC for pavement repair since the 1990s and is typically able to complete slab replacement within a six-hour window—including removal of cracked slabs, repair of the base course, placing of dowel bars and interlayer, and placing and curing of RSC. Lanes are typically closed at 11:00 PM and open to traffic again by 5:00 AM!
2 separate surveys were conducted in the past 2 decades
that sought to confirm that in addition to offering the immediate benefit of short lane closures, RSC was providing durable, long-lasting repairs:
1 2008—by Caltrans:
Condition surveys conducted for REPORT: “Evaluation of Rapid Strength Concrete Slab Repairs” (Bhattacharya, Zola, and Rawool, 2008) examined:
15 freeway projects across 6 regions:
—looking at more than 5,000 “individual” RSC slabs—only 3 years old at the time of the survey
—recording all distress
STUDY’S GOAL: To document the short-term performance of RSC
RESULTS: Showed that only 1.4% of the RSC slabs surveyed showed any premature distresses
2 2018-20—by Dr. Michael Darter, Currently: Principle Engineer-Applied Research Associates, Inc. (Apr 1999 – Present) Research, design, construction, materials, training, evaluation of highways, streets, and airports); Professor Emeritus of Civil & Environmental Engineering-University of Illinois; Former ISCP Director; and ISCP Honorary Member (2005)
By 2018, the time was right to assess longer-term performance. The evaluation focused on two California strategies for restoration of jointed plain concrete pavement (JPCP)
“A total of 3,562 rapid strength concrete slabs, located across 18 inner and outer traffic lanes on 12 major freeways that were two- to five lanes in each direction were surveyed,” said Darter.
1 “Individual” slab replacement with rapid strength concrete (ISR-RSC)
For the 6 ISR-RSC “individual” replacement projects being assessed:
• Survey team, working with Caltrans, randomly selected 6 of the 15 projects previously surveyed in 2008 (all ISR-RSC) to be part of a similar 2018 study
• Cracked, or badly damaged JPCP slabs had been removed
• Replaced with RSC slabs along a traffic lane
• RSC slab thickness typically 8 to 9 inches—remained the same
• Joint spacing typically 12-19 feet—remained the same
• Existing base courses had been largely left in place
• In some cases, dowels had been included in the transverse joints
• Neither shrinkage nor ASR requirements were specified at the time of slab replacement
• Concrete durability issues, typically seen as surface cracks and scaling, were almost non-existent
CONCLUSION:
• Located in southern California, the now 13-year-old RSC slabs had experienced on average truck traffic levels of 6 million total trucks in the inner lane and 20 million total trucks in the outer lane
• TOTAL of 1,493 ISR-RSC slabs were surveyed
2 “Total lane replacement” RSC (JPCP-RSC)
REPORT: “Long-Term Performance of Rapid Strength Concrete (RSC) Slabs on California Highways” (Darter, 2021).
—For the six JPCP-RSC “lane replacement” projects being assessed, a survey team, working with Caltrans, randomly selected 6 of the 15 projects previously surveyed in 2008 (all ISR-RSC) to be part of a similar 2018 study.
—Located in southern California
—The now 13-year-old RSC slabs had experienced on average truck traffic levels of 6 million total trucks in the inner lane and 20 million total trucks in the outer lane
—Total of 1,493 ISR-RSC slabs were surveyed:
• All slabs base courses along one or more traffic lanes had been removed and replaced with RSC
• Slab thickness was typically increased during reconstruction to be 10-to-14 in.
• Perpendicular joint spacing was uniform at 14 ft.
• Dowels were placed at all transverse joints
• Both RSC shrinkage and ASR requirements were included in these specifications
—An additional 6 projects were randomly selected to represent JPCP-RSC “lane replacement” pavements:
—SURVEY INCLUDED:
Only JPCP-RSC slabs in outer lanes included because only RSC slab panels located in outer lanes with heavy truck traffic had been replaced (16 million trucks total)
-Numbered 2,069
-Been in service from nine to 17 years
-Total of 3,562 RSC slabs
-Across 18 inner and outer traffic lanes
-12 major freeways
-2- to 5 lanes in each direction
• Recent Caltrans and Google Maps videos of traffic lanes were used to survey types of distress and the percentage of slabs affected
• On-site field observations were made of 5 of the projects to confirm the accuracy of data collected using the videos. Distresses examined included:
• Transverse cracking
• Longitudinal cracking
• Corner cracking
• Joint spalling
• Shrinkage cracking
• Surface defects
• Joint faulting observations
• Pumping/erosion
RSC MATERIALS:
Rapid Set® Cement
• Manufactured by CTS Cement, was used for the majority of the original slab replacements.
• A non-proprietary belitic calcium sulfoaluminate cement that reaches opening strength (400 psi flex) in 1.5 hours
• Very low shrinkage
• Resistant to sulfate attack
• Resistant to alkali-silica reaction (ASR)
• Can be used in a volumetric mixer or ready mixer
4×4 Concrete System
• Used for a few projects
• Proprietary system, originally patented by BASF and now offered by multiple admixture suppliers
• Opening strength (400 psi flex) in 4 hours
• Can experience higher shrinkage than Rapid Set® cement if a high dosage of shrinkage-reducing admixture (SRA) is not used
• Cannot be used in volumetric mixers
• Appropriate for ready-mix delivery only
PERFORMANCE RESULTS:
Using these construction guidelines,
appropriately designed RSC pavements should achieve
… 30 years of service…
Inner lanes that experience less truck traffic
expected to last … 30 years
ISR-RSC survey results for the “individual” slab replacements of 6 projects were consistent with findings from 10 years prior (2008):
• Very low distress development, with 1 exception: Of the slabs in the outer lane, 20% had developed transverse fatigue cracks—the only significant cracking experienced across all 12 projects. Transverse cracks are the commonly seen top-down fatigue cracks caused by heavy trucks moving over the upward curled slabs and applying axle loads that cause high tensile stress in the top of the saucer-shaped slab caused by moisture and temperature gradients.
• Transverse fatigue cracks were predominantly located in the roadways’ outer lanes, where truck traffic was heaviest.
• Inner lanes were found to crack at a rate of only 3%, even though they carried 6 million trucks, whereas the outer lanes developed 21% carrying 16 million trucks.
• Minor occurrences (<1.1% RSC slabs) of longitudinal cracking, corner cracking, joint spalling, and shrinkage cracks).
• Very little pumping observed
• Very little joint faulting observed
JPCP-RSC survey results for “lane replacement” of 6 projects were consistent with the ISR-RSC projects for all distress types (very low development of any distress, less than 1%).
• Major difference is that transverse fatigue cracking was only 0.3% for JPCP-RSC rather than 21% for ISR-RSC in the outer heavy truck lanes. For example, one JPCP-RSC project, I-10 in Riverside, California, had the outer lanes replaced in 2003, using 11-in.-thick slabs, 14-ft. joint spacing, and dowels at all joints. The survey showed excellent performance of the RSC with no significant cracking of any type having taken place over 17 years.
• Concrete durability issues, typically seen as surface cracks and scaling, were almost non-existent
• No significant difference in cracking or durability performance between CTS Rapid Set® cement concrete and the 4×4 system
• Survey team did note, however, that construction quality is a very important consideration because, historically, durability issues have been associated with construction variation and material durability issues.
BASED ON SURVEY FINDINGS:
• It is estimated that outer lane ISR-RSC individual, thin slabs have service lives of 10-to-13 years and inner lanes with less truck traffic in the order of 15-20 years with the same thin slabs.
• Individual slab replacement appears to be a viable repair solution for:
—Lower truck traffic inner lanes
—Short-term strategy for outer lanes
—Dowel bar use at all transverse joints is recommended to prevent pumping and faulting
• Considered to be most long-lived reconstruction solution:
—Replacement of the entire lane
—Using a closer joint spacing of 14 ft.
—Thicker slabs
—Installing dowel bars at all transverse joints
—Providing a new base
—Diamond grinding should be performed as needed to achieve pavement smoothness after RSC slab replacement
Using these construction guidelines, appropriately designed RSC pavements should achieve at least 30 years of service (based on the limited distress seen in lane replacement RSC slabs at the approximately 17-year mark). Inner lanes that experience less truck traffic are expected to last at least 30 years.“With the increasing demand that highway work be completed overnight in order to minimize impact on the traveling public and decrease emissions from traffic congestion, it’s great to receive validation that pavement management with rapid strength concrete is a long term solution for our nationwide highway infrastructure,” said Ken Vallens, President and CEO of CTS Cement Manufacturing Corporation.
To date, Caltrans has not specified durability criteria for shrinkage and ASR for slab replacement work, because it has typically been considered a short-term (approximately 5-year) solution. However, with survey results showing that slab replacement using RSC can be a long-term pavement reconstruction option, it is the belief of the survey team that durability criteria should now be included.

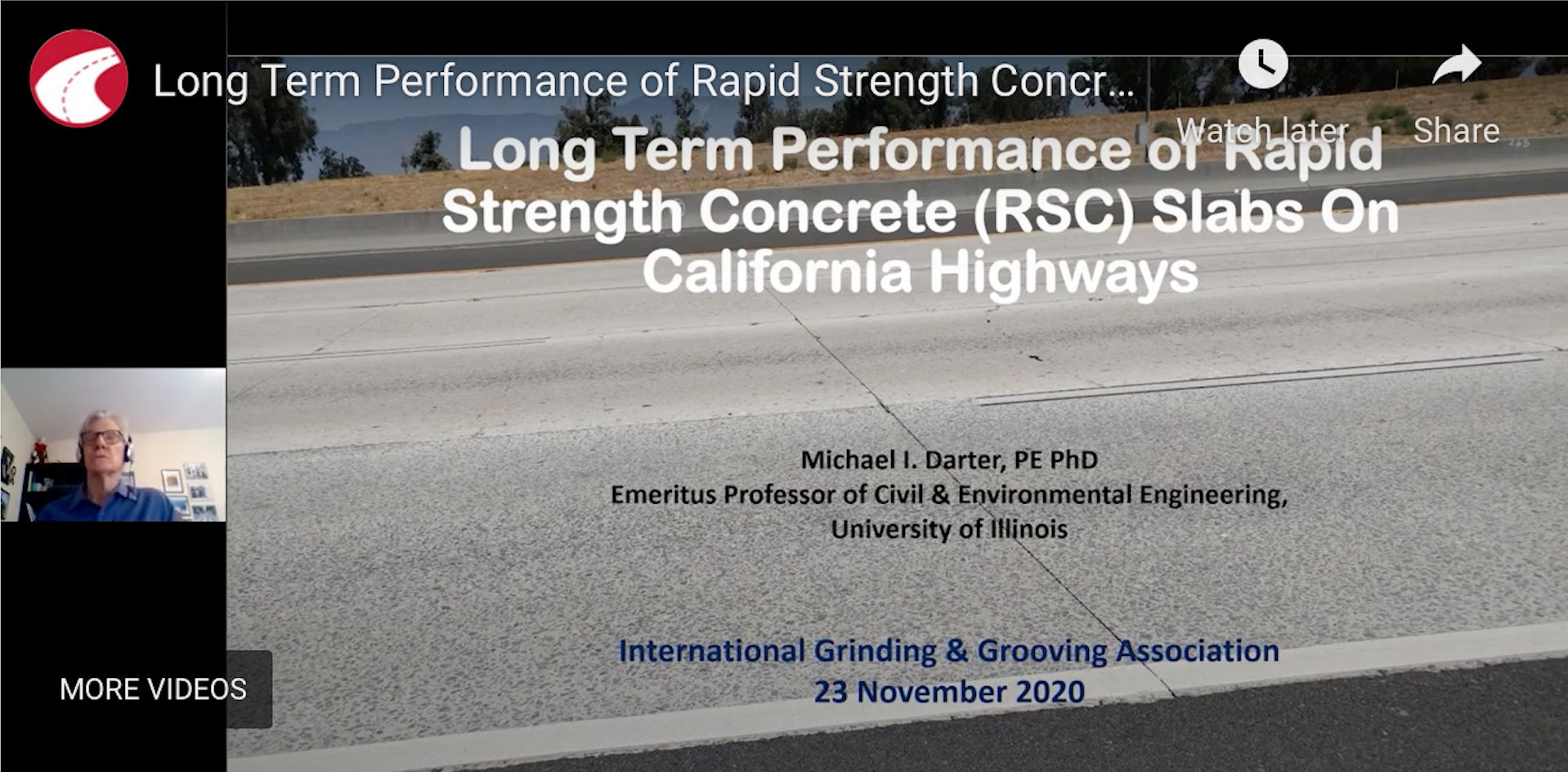

For IGGA Michael Darter Presentation – YouTube VIDEO,
